User Guide

---

What is gitgauge?

gitgauge is a desktop application for Teaching Assistants (TAs) to assess individual contributions in student group coding projects. By analysing Git repository history, it provides:

• Clear contribution summaries
• Visual insights and timelines
• AI-generated commit analysis
• Ready-to-export grading sheets

All data stays on your machine. No setup headaches, no cloud sync.

---

Features

• Import local or remote Git repositories (with optional PAT for private repos)
• View per-student contribution breakdowns with visual dashboards
• Use regex filters to refine commit analysis
• Upload a configuration file to map multiple contributor emails to one student
• Generate AI summaries using Gemini
• Export scaled grading data to CSV for upload to Monash Moodle

Note

gitgauge is intended for Teaching Assistant (TA) use only.

---

Before You Start

Generate an API Key (OPTIONAL)

If you want AI-generated commit summaries:

1. Visit: https://aistudio.google.com/app/apikey
2. Sign in with a Google account
3. Click “Create API Key”
4. Assign the key to a Cloud Project
5. Copy the key and paste it into gitgauge when prompted

Note

AI summaries are optional. gitgauge works fully without Gemini.

Warning

Gemini API tokens are not stored and only used for the current session.

---

Example Scenario

You are grading a group project for FIT3170. The group has pushed their work to a GitHub repository. You want to assess individual contributions.

Here’s the process:

1. Launch gitgauge.
2. Import the repository.
3. Upload a configuration file linking students to multiple emails.
4. Filter out unhelpful commits (e.g. formatting).
5. Review the AI summaries.
6. Upload the grading sheet.
7. Export the final scaled CSV.

---

Step By Step Workflow

1. Launch gitgauge

Start the app from your desktop.

---

2. Import a Repository

• Enter a Git URL into the text box
• If importing a private repository, enter your Personal Access Token (PAT) when prompted

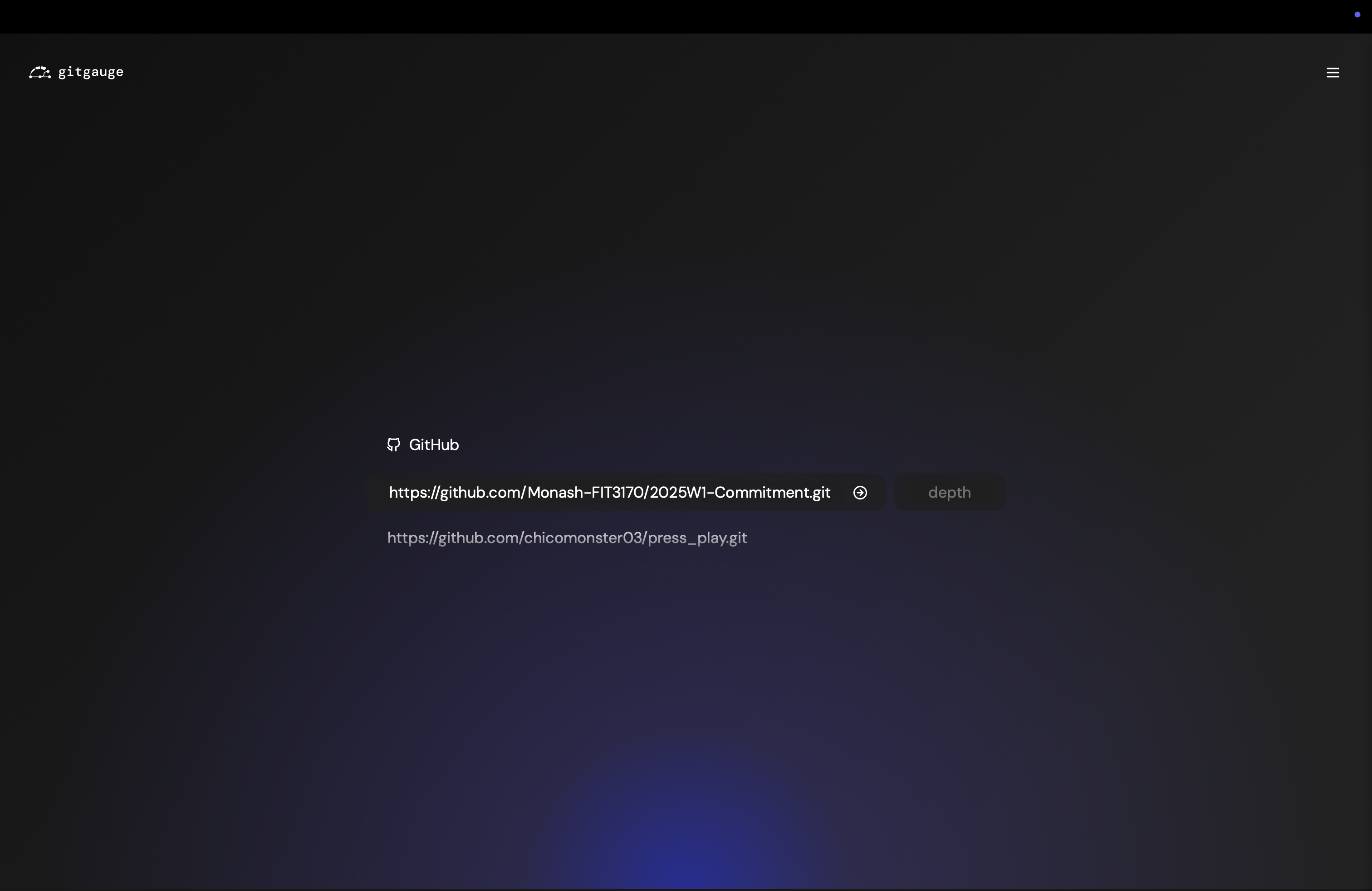

Fig. 1a – Importing a public Git repository

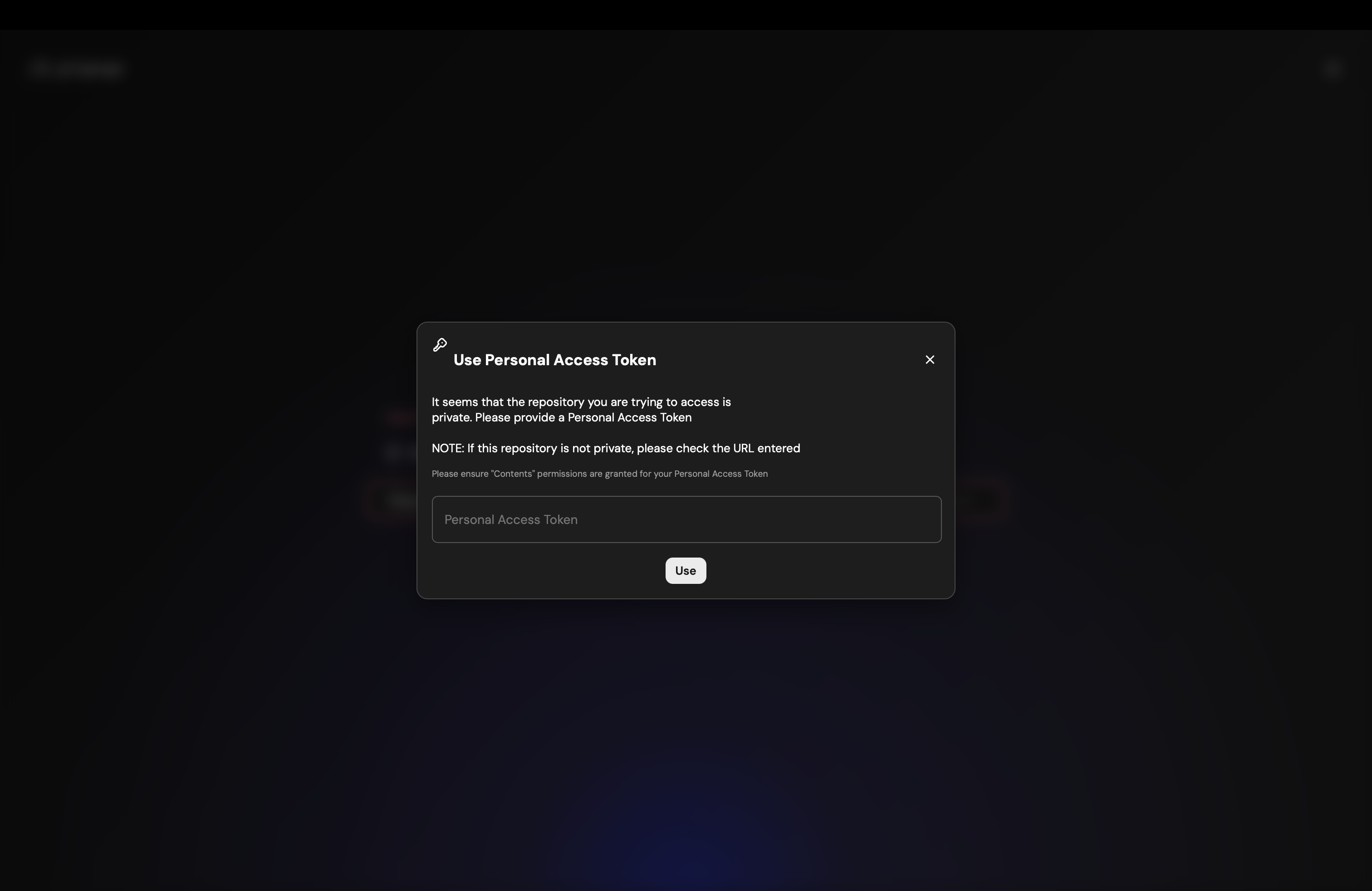

Fig. 1b – Importing a private Git repository using PAT

---

3. Link Disparate Emails to Contributor (OPTIONAL)

Students often commit using different emails. To group them correctly:

• Click “Upload Config File”
• Upload a .json file mapping alternate emails to the student’s full name / identifier

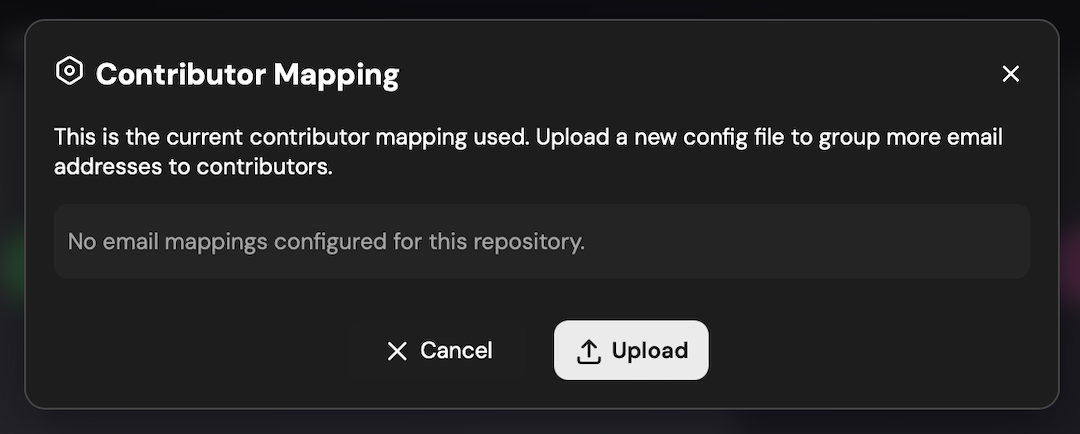

Fig. 2a – Empty configuration modal

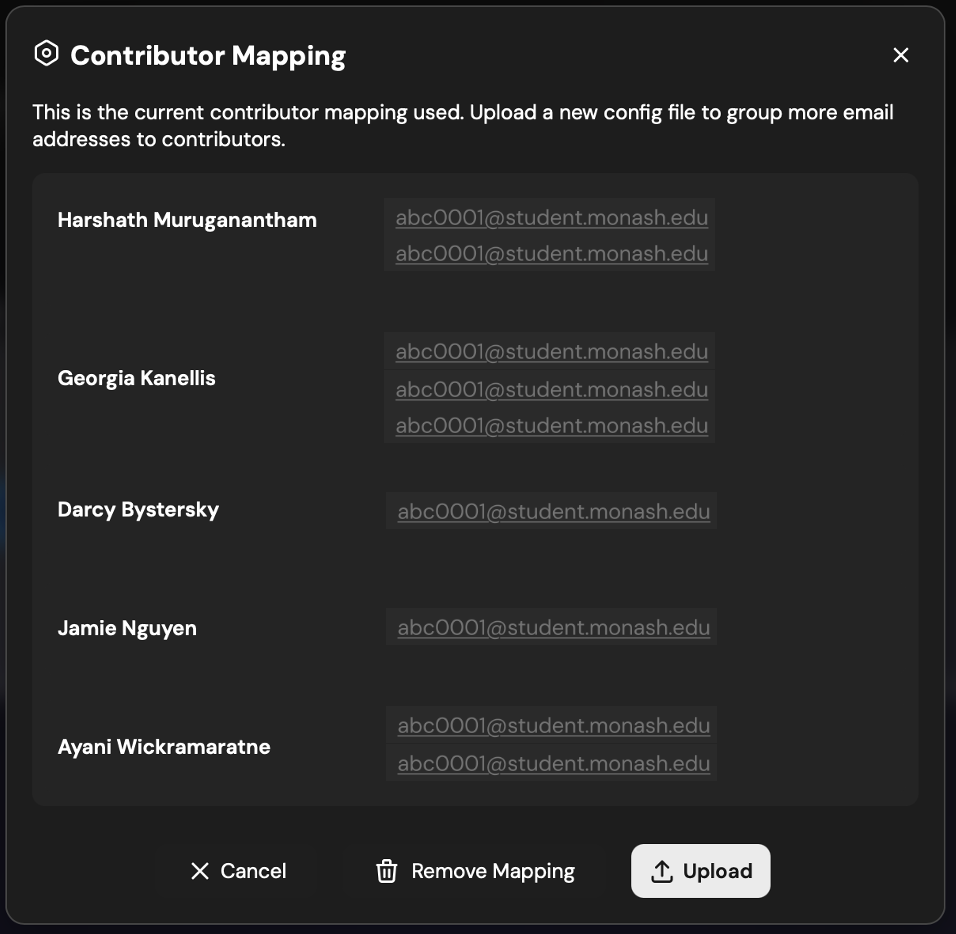

Fig. 2b – Configuration with mapped contributors

Warning

Only contributors listed in the config file will be included in the analysis and export. Unmapped commit emails are ignored entirely.

TEMPLATE AVAILABLE: See Example Config in the repo.

---

4. Explore the Visual Dashboard

• See visualisations of contributions:
  • Commit timelines
  • Code churn over time
  • Metric-based breakdowns
  • Apply regex filters to ignore noise (e.g. “typo”, “test commit”)

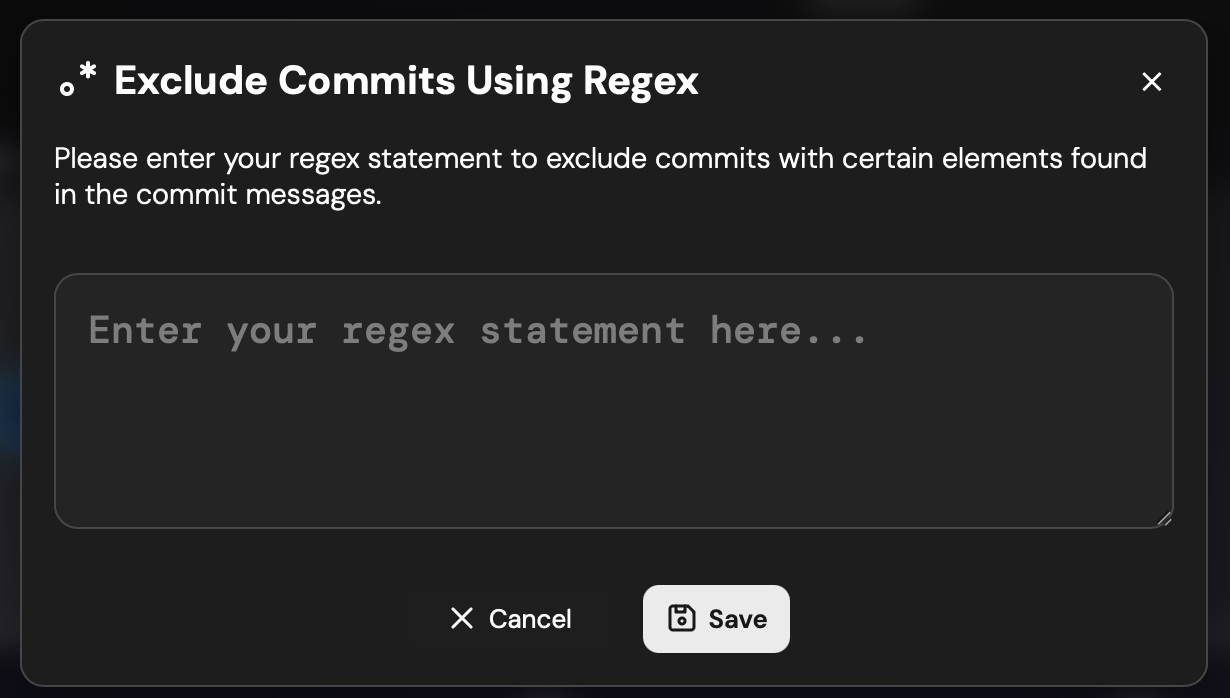

Fig. 3a – Add regex filter to refine analysis

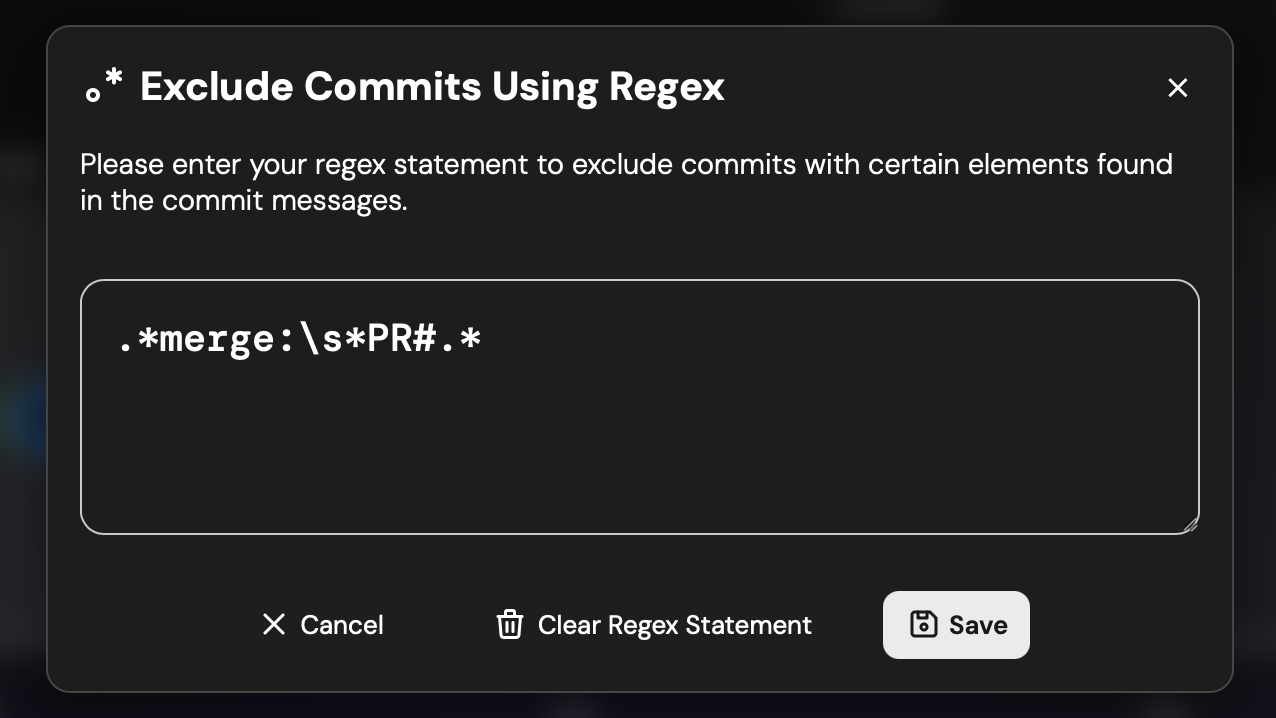

Fig. 3b – Example regex filter: exclude 'fix', 'format'

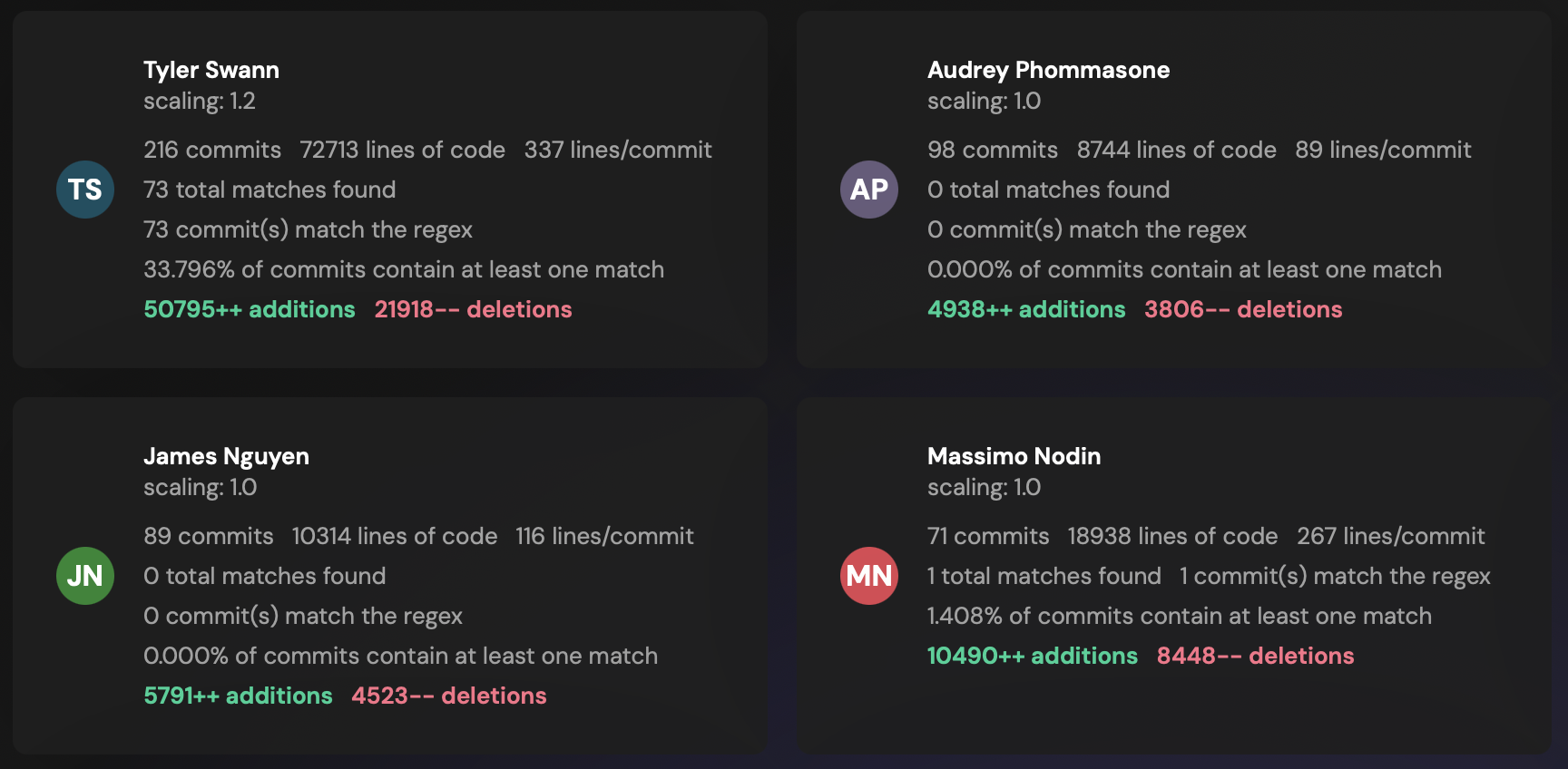

Fig. 3c – Filtered view with irrelevant commits removed

Tip

Try */merge: PR#.* to exclude merge commits as a test.

---

5. Review Contributor Overview

• View:
  • Total commits
  • Lines of code added/removed
  • Contribution weighting by metric

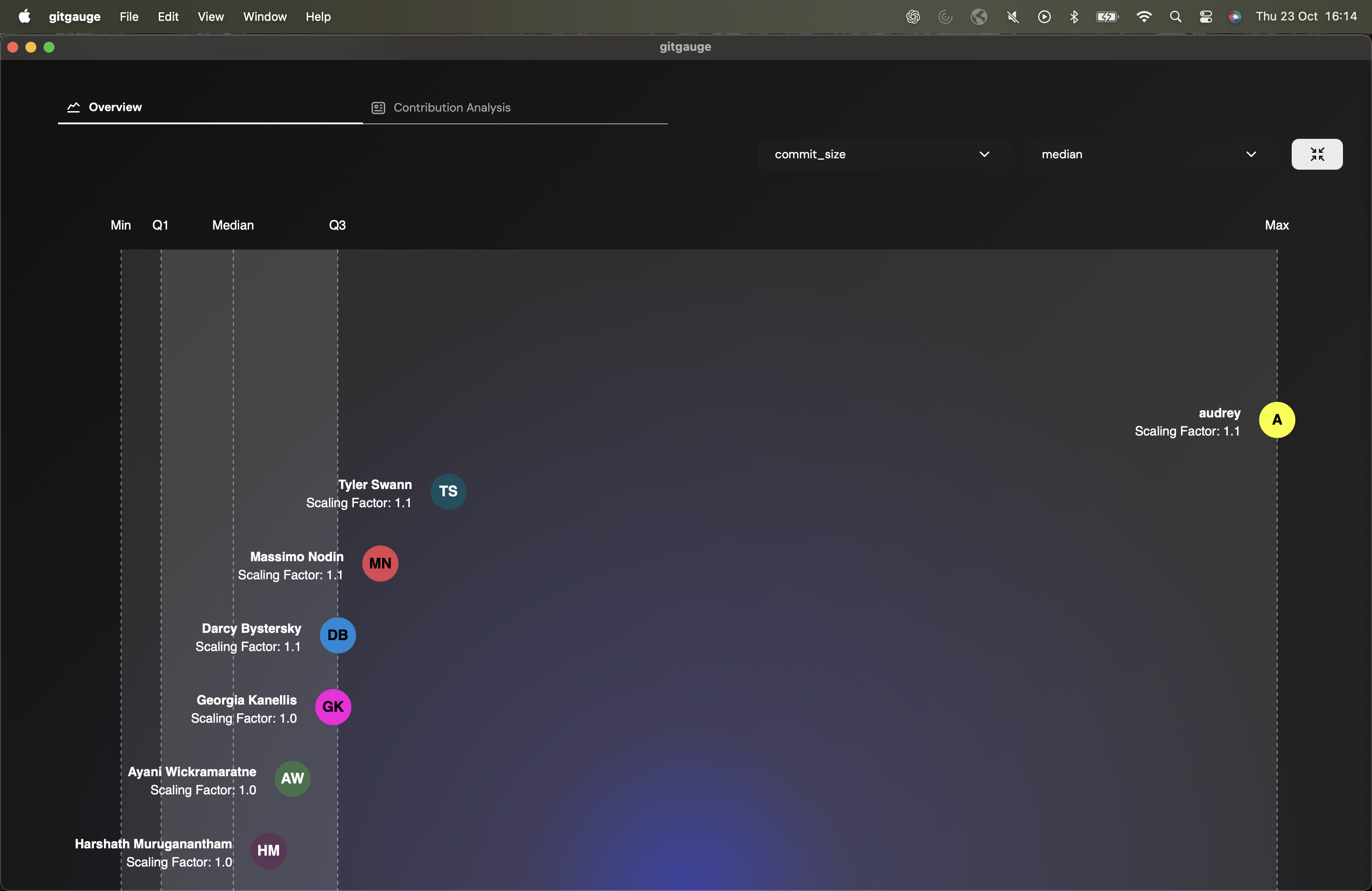

Fig. 4a – Overview of all contributors

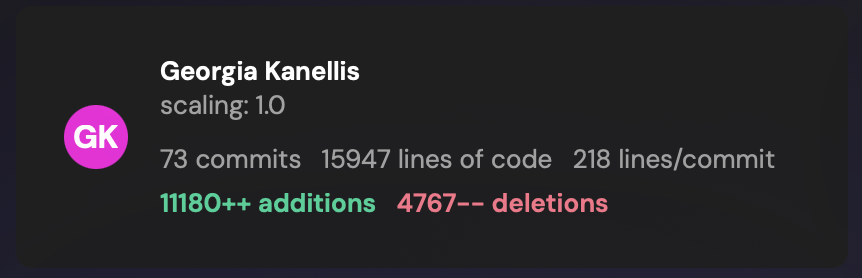

Fig. 4b – Individual contributor performance

---

6. View AI Generated Analysis

• Open the “AI Analysis” tab
• Review summaries of:
  • Commit patterns
  • Effort distribution
  • Highlights or red flags

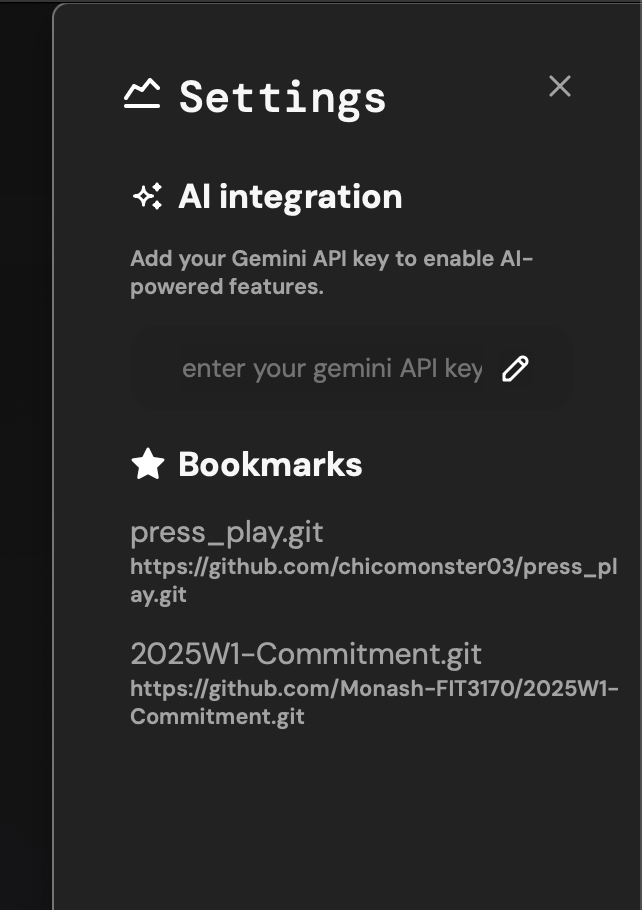

Fig. 5a – Enter Gemini API key

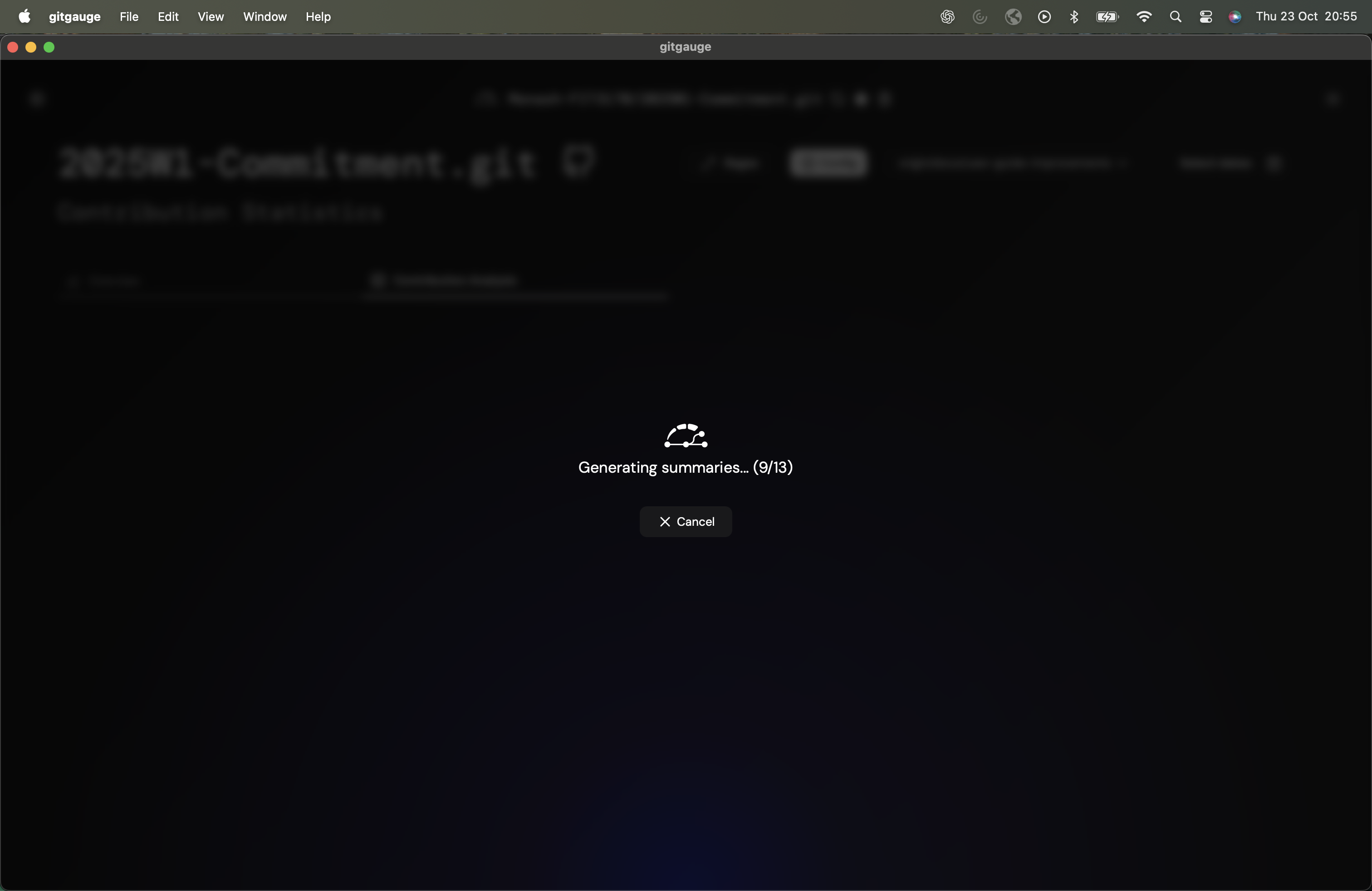

Fig. 5b – Generating AI summaries

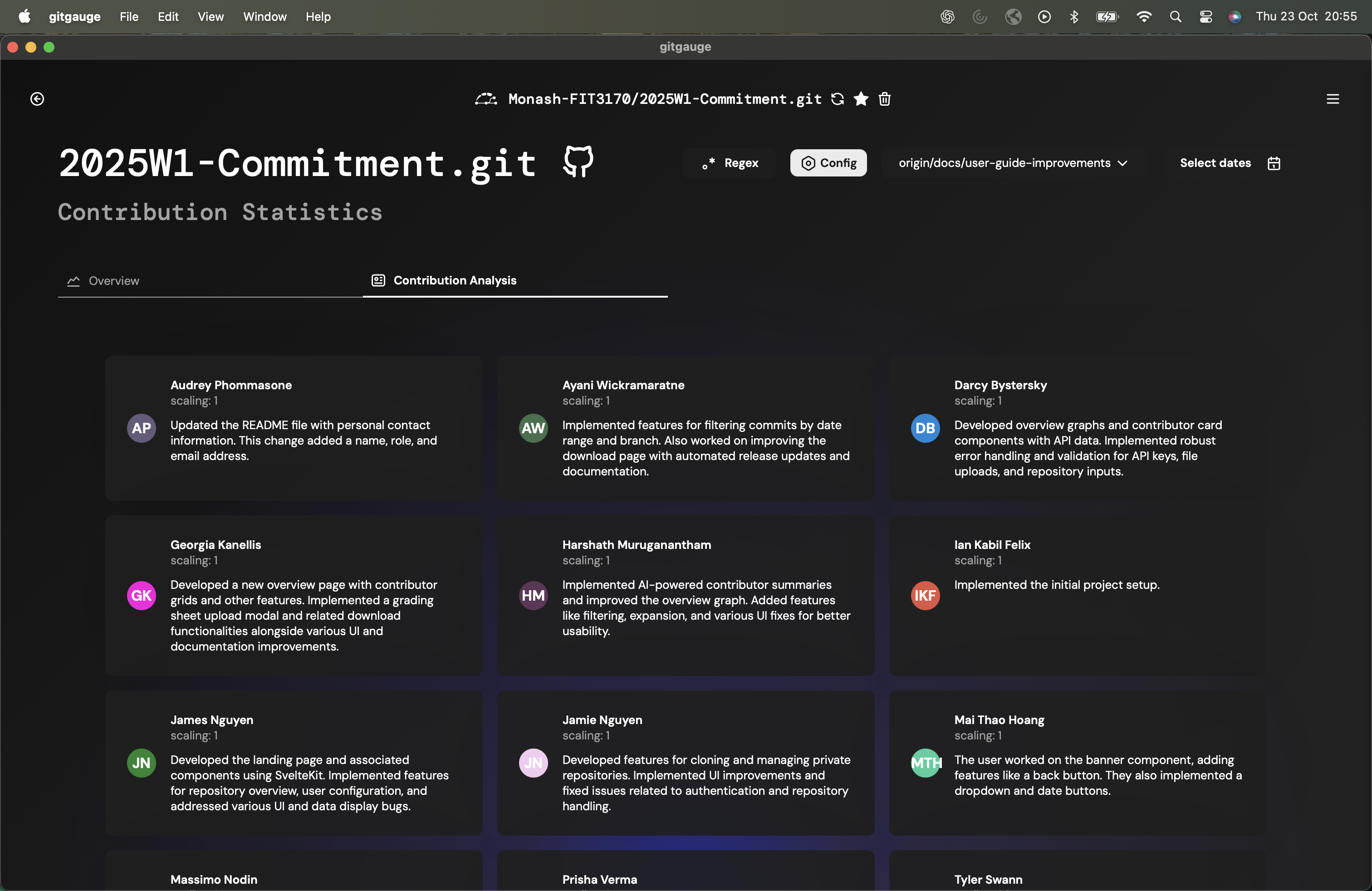

Fig. 5c – Completed AI Summary per contributor

---

7. Upload Grading Sheet and Export

• Upload a CSV with student emails
• gitgauge matches contributors to the grading sheet
• Export final results as a CSV file

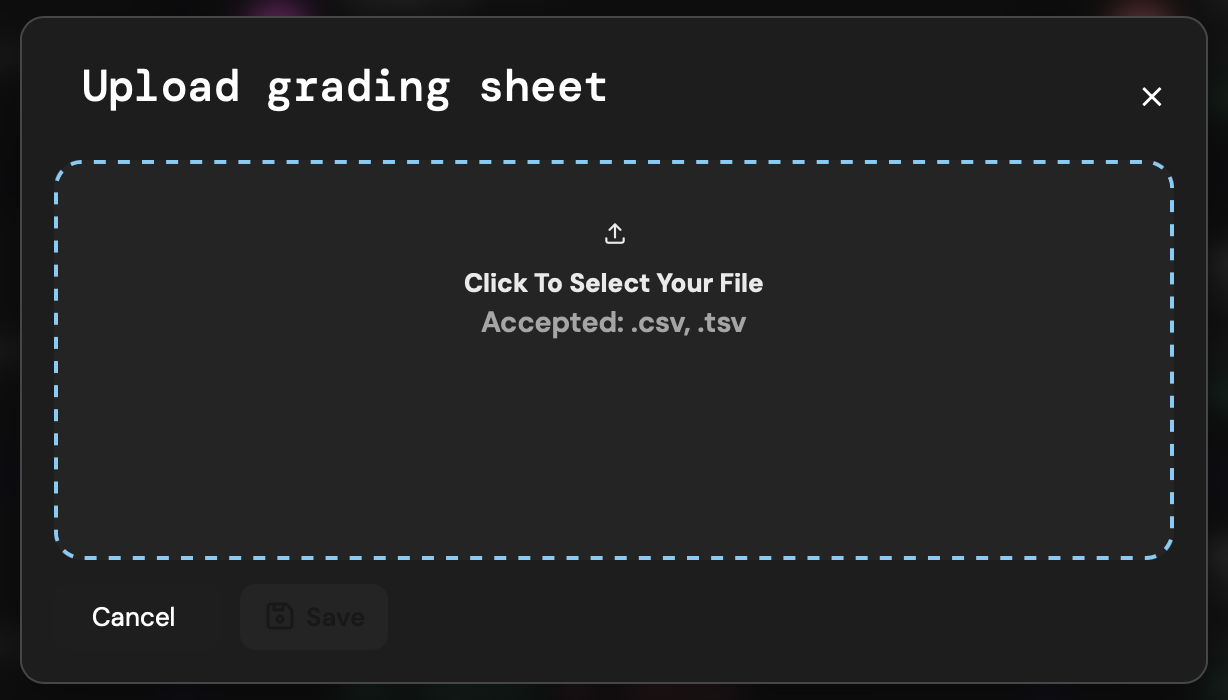

Fig. 6a – Upload grading sheet

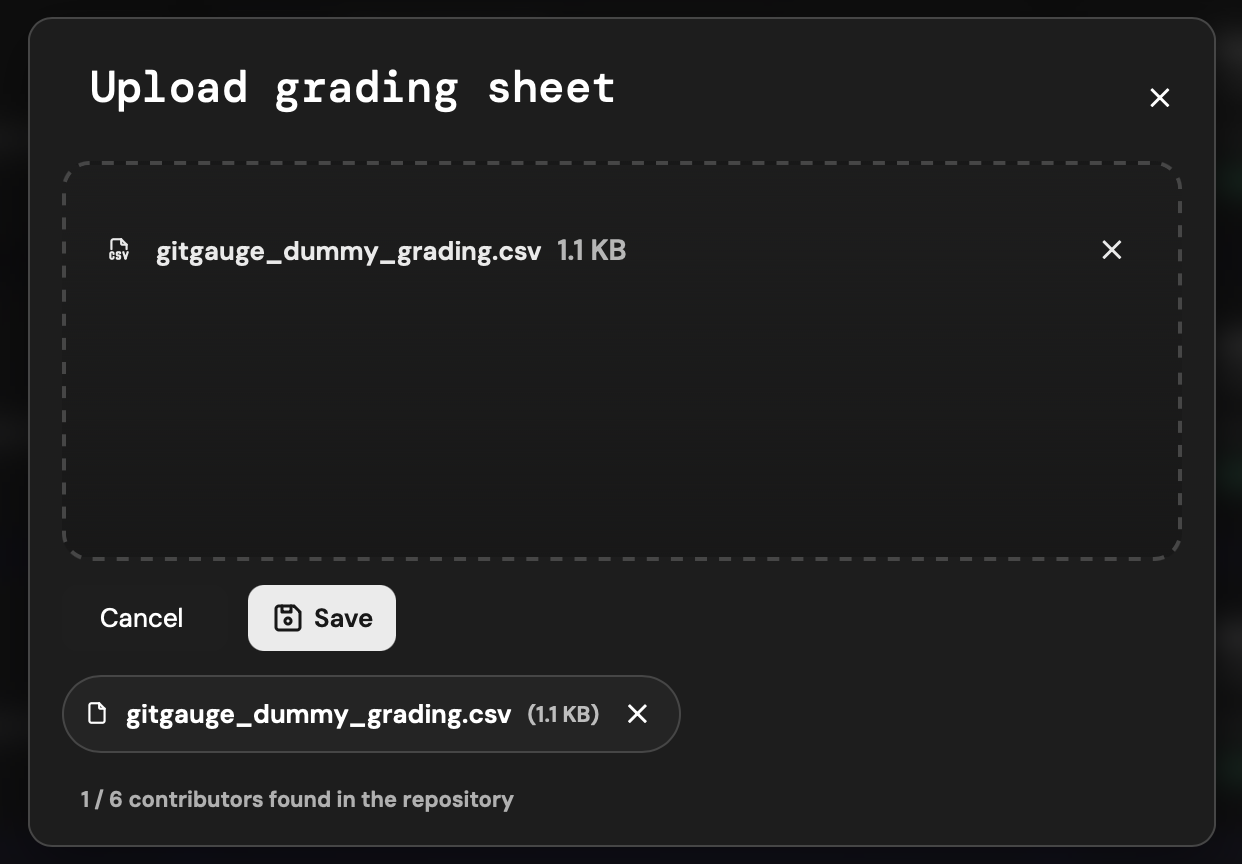

Fig. 6b – Review mapped grading

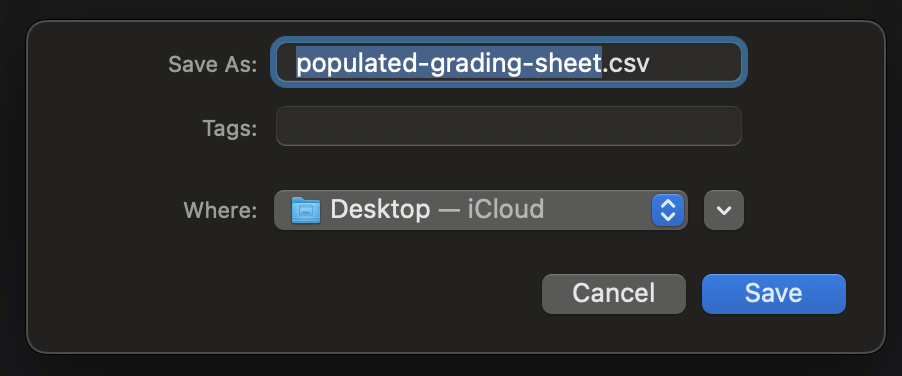

Fig. 6c – Export results

---

Contributor Configuration File

Use a .json file to group all known emails under a single student identity.

Example Config Format

{
  "Student Full Name 1": [
    "student1@university.edu",
    "alt1@gmail.com",
    "alt2@users.noreply.github.com"
  ],
  "Student Full Name 2": [
    "student2@university.edu"
  ]

}

Warning

• Only mapped contributors are included in contribution analysis
• Emails not in the configuration will not be shown or included in stats
• Unlinked commits are silently ignored

How To Obtain Contributor Emails

OPTION 1: Ask Students to Submit All Potential Contributing Emails

git config user.email

OPTION 2: Extract From Git Log

git log --format='%ae' | sort | uniq

---

Handling Missing Contributor Cases

Contributor in Repository	Contributor in Grading Sheet	Contributor in Config File	Outcome
Yes	Yes	Yes	Student receives a scaled grade based on their contributions using the selected metric and branch.
No	Yes	Yes	Student appears in the grading sheet but has made no commits. They receive "NA" in the scaled mark output.
Yes	No	Yes	Contributor is not listed in the grading sheet and is assumed to be outside the analysed cohort. Their data is ignored in the export.
Yes	Yes	No	Contributor’s commits are found, but their email is not mapped in the configuration file. These commits are ignored and not shown as separate contributors.

---

Privacy and Security

• gitgauge runs 100% locally
• No data is uploaded or synced
• Repositories are auto-deleted after 30 days
• PATs and Gemini tokens are never stored

Reminder

Always obtain student consent before analysis.

---

Troubleshooting & FAQ

Q: The AI summary isn’t loading

A: Check your Gemini API key and verify your usage quota.

Q: A contributor shows up twice

A: Use the configuration file to group all their email addresses.

Q: A student isn’t appearing in the outputted grading sheet

A: Their email may be missing from the configuration file or inputted grading CSV.
